available with: |
Samsung SMART Signage Platform (SSSP / Tizen) Player : Starter, Pro, Premium |
❗VERY IMPORTANT❗: You must install the ITESlive software on the device that will display your content. Do not install the ITESlive software on your personal computer.
Important: If the following steps do not correspond with the menus you are seeing on your monitor, try following the steps described in the following article instead.
How to install ITESLIVE on my Samsung SMART Signage Platform (SSSP) monitor
Important: If your device has never been used for a digital signage project, you can skip to step 2. Monitor configuration.
If your monitor has been used for a digital signage project, the following steps are mandatory.
1. Resetting the monitor
Press on the menu button on your remote control.
Once in the menu, select the "System" entry, once in this submenu, select the "General" entry.
Once in the "General" menu, select the "Empty Storage" entry.
The monitor will then ask you to confirm that you wish to empty the storage, select "Yes".
Once the storage has been emptied, once more in the "System" menu, select the "Reset System" entry.
The monitor will ask you to confirm that you wish to reset the system settings, select "Yes".
Once you have the confirmation that the system settings have been reset, you can continue with the following steps.
Press the "Menu" button on your remote.
Select the "System" menu and select the "Start Setup" entry.
2. Monitor Configuration
On the first page that is displayed during the monitor configuration, select the word "Hello" in the desired language.
There may be a slight delay while your monitor detects the available networks. Once the network list is displayed, select the desired network.
Then enter your WiFi network's password.
The monitor will display a confirmation message once the connexion has been established successfully.
The monitor will then ask which type of installation type you wish to use to setup your monitor, select the "Manual Setup" option.
Select the display orientation that will be used for your project, in the example below the Landscape orientation has been selected.
Select the "Custom App" in the "Player Selection" options.
You can simply skip the "Connect to RM Server" step.
Set the current date and time and select the "Next" button.
Create a NIP that consists of 6 numbers, this NIP will be requested by the monitor when someone attempts to edit security configurations in the monitor.
Important: It is important to document the NIP created during this step, because without it certain menus in the monitor will not be accessible.
A message indicating that the monitor is ready to be used will be displayed, you can continue with the following steps afterwards.
Press the "Menu" button on your remote.
Select the "System" menu.

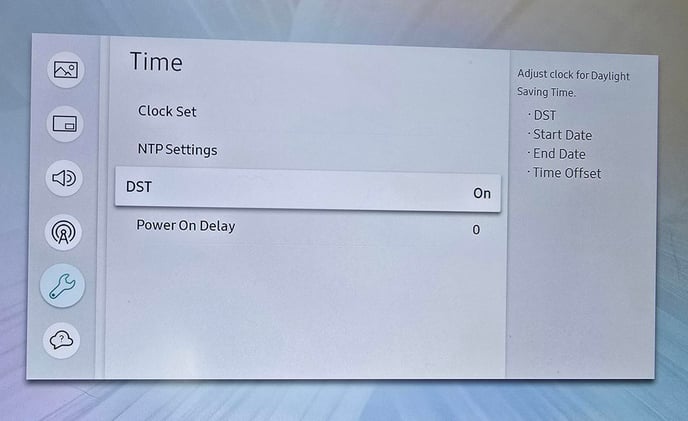

In the "System" menu, select the "Time" entry.
(Conditional depending on the region) Configure Daylight Saving Time (DST)
Important: Although it is possible to enable automatic daylight-saving time changes, this step is conditional and should only be performed if you are installing a display reader in a region that observes daylight saving time.
The values used in the following steps correspond to the Quebec region and are provided as examples only. These values vary depending on location and time zone. For more information, visit https://www.timeanddate.com/time/dst/.

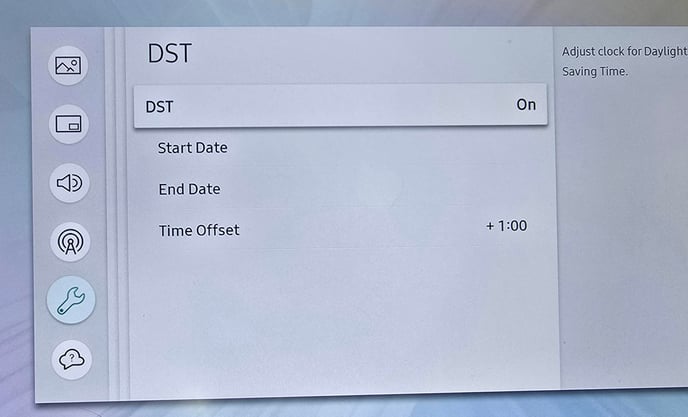

Once in the "Time" menu, select the "Daylight Saving Time" entry.

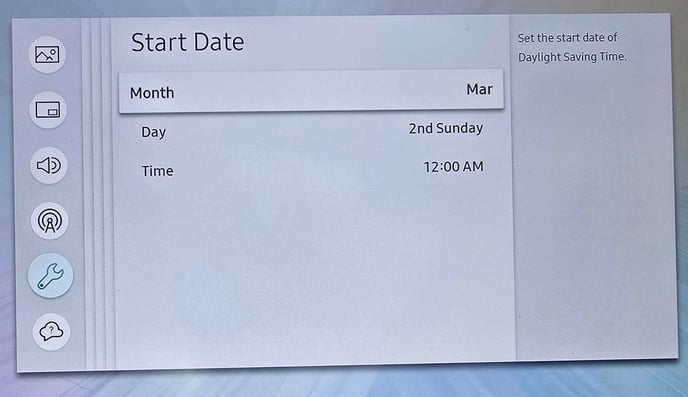

Enable daylight saving time and select "Start Date."
Select "Month" and choose the month when the time change occurs. Then select the day and choose the day on which the time change takes place.

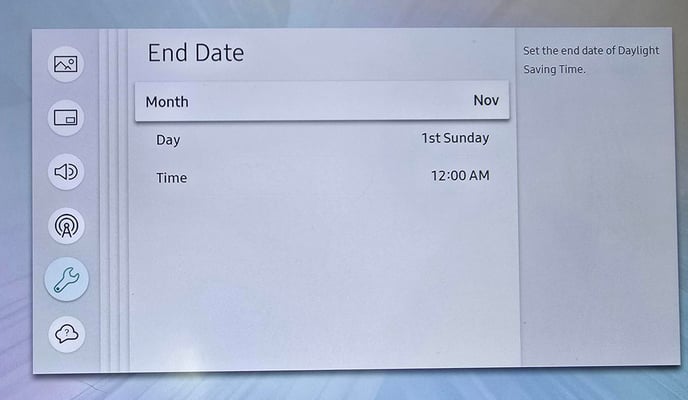

Return to the previous screen and select "End Date." Select "Month" and choose the month when the time change ends. Then select the day and choose the day on which the time change ends.

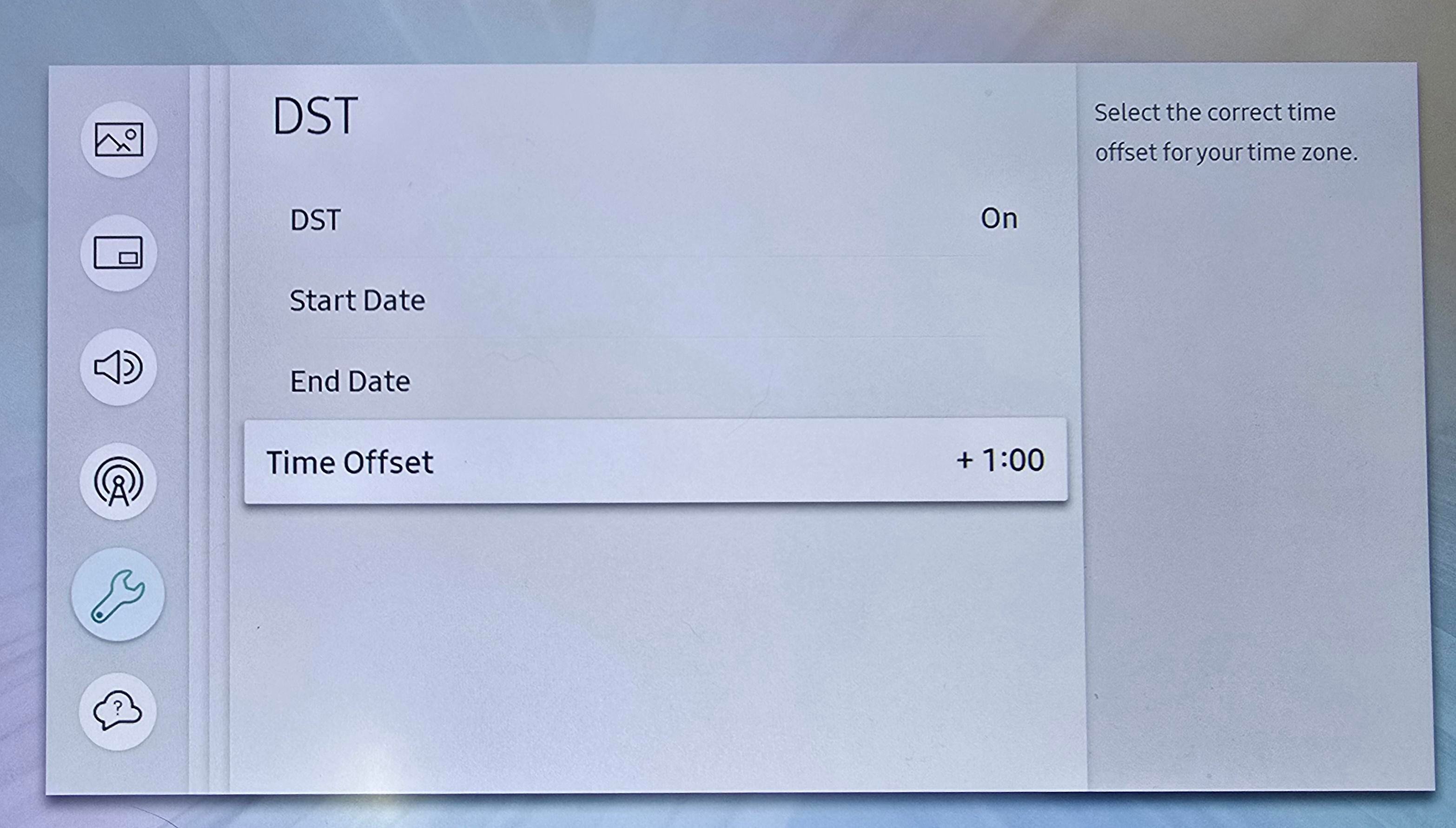

Return to the previous menu and ensure that the time zone correctly reflects the desired daylight saving time change.
In the "Time" menu, select the "NTP Settings" entry.
In the "NTP Settings" select the "Server URL" entry.
Enter the following URL.
time.cloudflare.com
Once you are back in the "NTP Settings" menu, select the "Time Zone" entry, then select your time zone in the list.
After having selected your time zone, select the "Save" button.
The monitor will then restart to reset the current time.
Return to the "System" menu and select the "Auto Source Switching" entry.
In the "Auto Source Switching" menu, select the "Auto Source Switching" configuration.
Select the "New Input" value for the "Auto Source Switching" configuration. Then select the "Default input" configuration.
Select the "Custom App" value.
Now press the home button on your remote.
In the menu that opens, select the "Custom App" entry and enter the following URL to install the ITESlive software.
https://iteslive.tv/
The monitor will confirm that the installation has been completed and will start the application automatically afterwards.

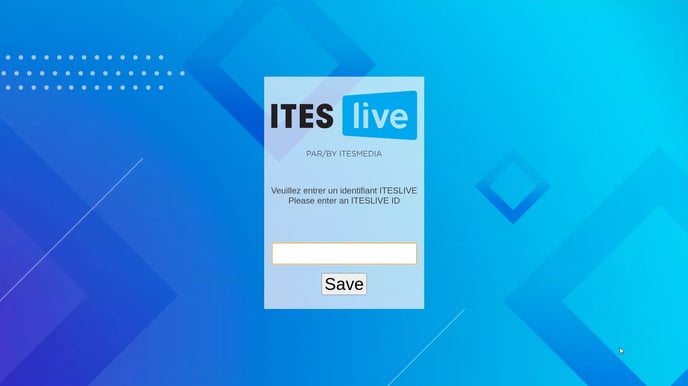

Once the application appears in the list of startup applications, you can close the window. The next time the user logs into the device, the ITESlive display will launch. However, a PIN will be required to identify the ITESlive player that will be used for the display on this device. You can either launch the application manually to enter the PIN, or restart the device so the application runs at startup. In either case, a window prompting for a PIN will appear.
Enter the PIN you noted earlier in the text field and click on the "Save" button to start the display.
See the article for generating a PIN for this step: Generating a PIN
