1. Resetting the monitor

Press on the menu button on your remote control.

Once in the menu, select the "System" entry, once in this submenu, select the "General" entry.

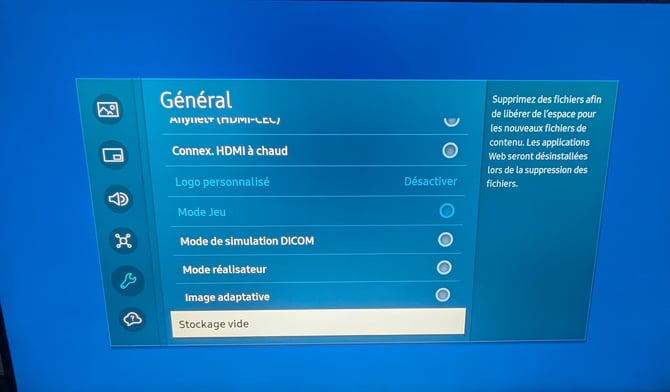

Once in the "General" menu, select the "Empty Storage" entry.

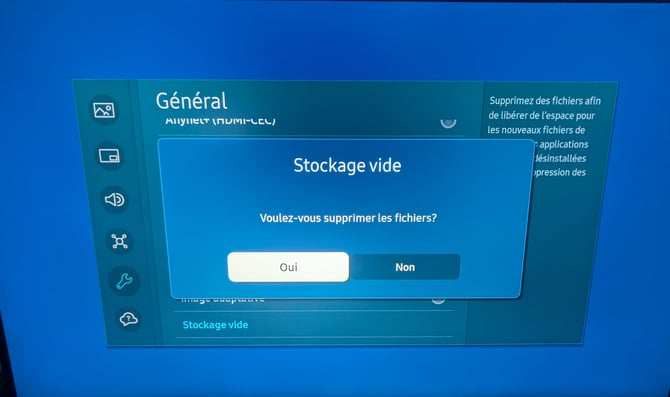

The monitor will then ask you to confirm that you wish to empty the storage, select "Yes".

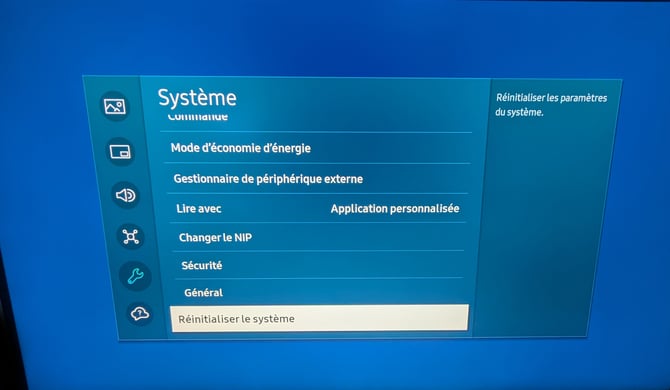

Once the storage has been emptied, once more in the "System" menu, select the "Reset System" entry.

The monitor will ask you to confirm that you wish to reset the system settings, select "Yes".

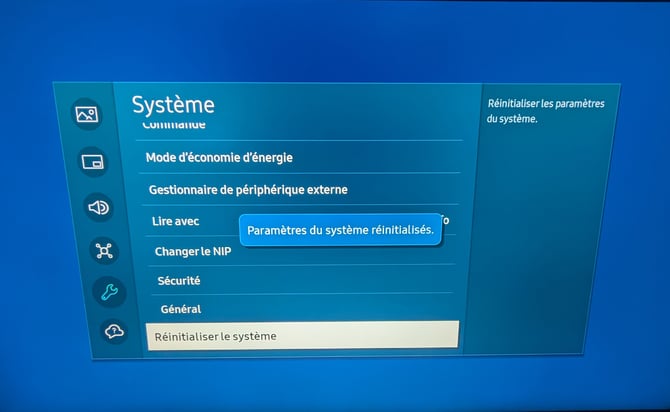

Once you have the confirmation that the system settings have been reset, you can continue with the following steps.

Press the "Menu" button on your remote.

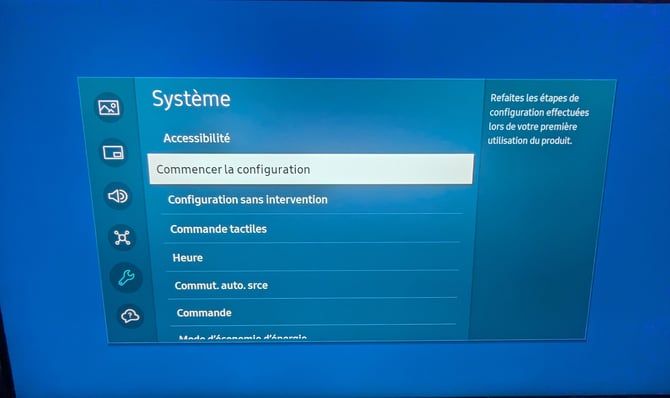

Select the "System" menu and select the "Start Setup" entry.



2. Monitor Configuration

On the first page that is displayed during the monitor configuration, select the word "Hello"  in the desired language.

There may be a slight delay while your monitor detects the available networks. Once the network list is displayed, select the desired network.

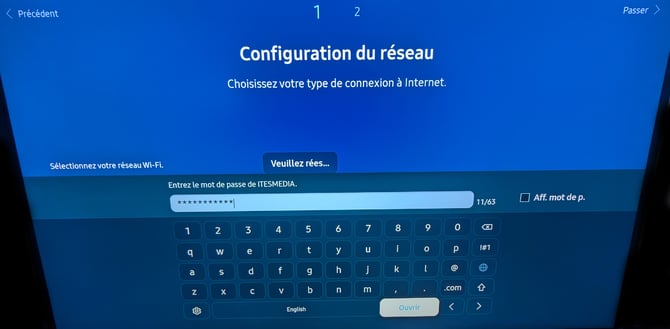

Then enter your WiFi network's password.

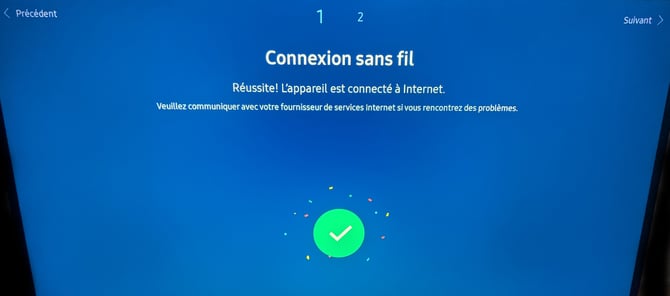

The monitor will display a confirmation message once the connexion has been established successfully.

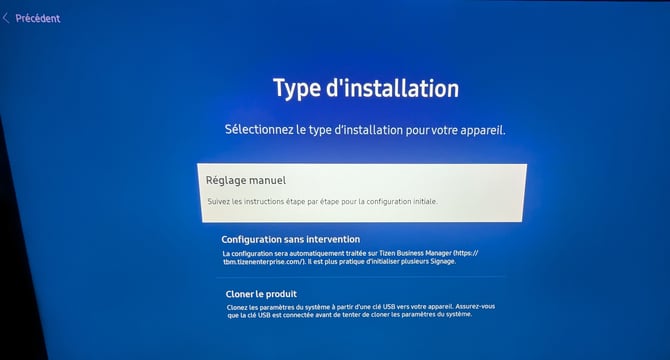

The monitor will then ask which type of installation type you wish to use to setup your monitor, select the "Manual Setup" option.

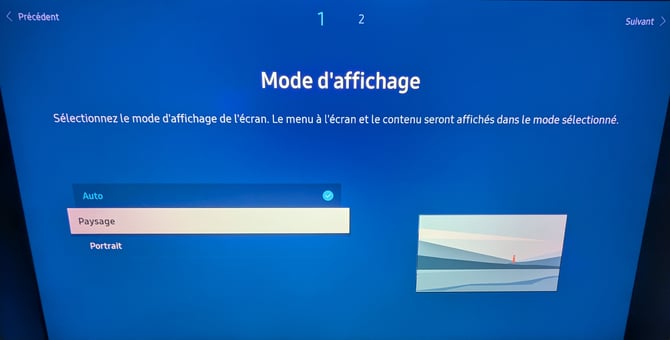

Select the display orientation that will be used for your project, in the example below the Landscape orientation has been selected.

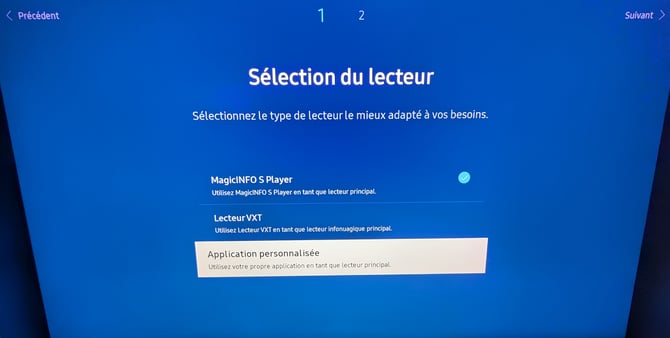

Select the "Custom App" in the "Player Selection" options.

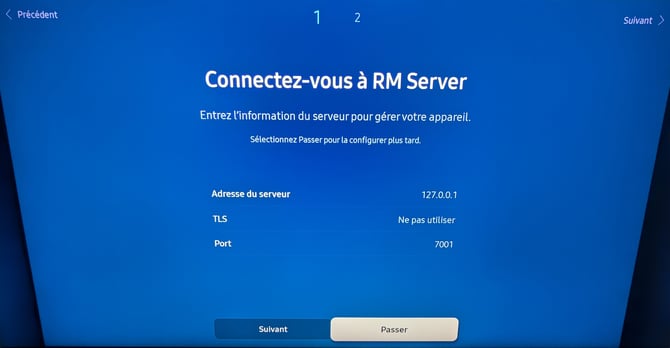

You can simply skip the "Connect to RM Server" step.

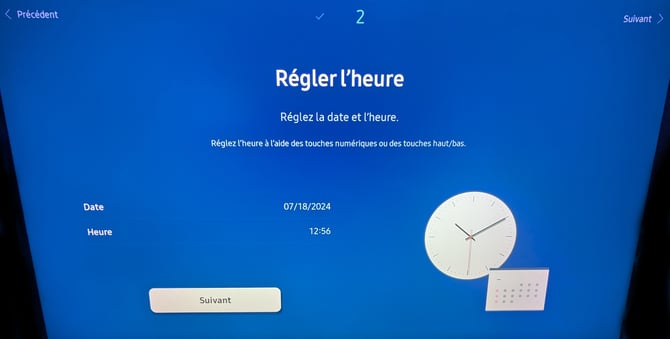

Set the current date and time and select the "Next" button.

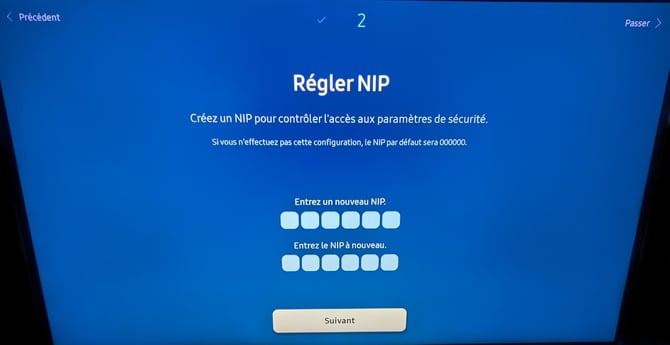

Create a NIP that consists of 6 numbers, this NIP will be requested by the monitor when someone attempts to edit security configurations in the monitor.

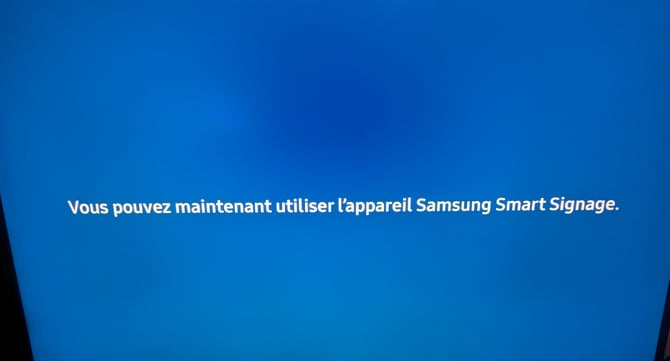

A message indicating that the monitor is ready to be used will be displayed, you can continue with the following steps afterwards.

Press the "Menu" button on your remote.

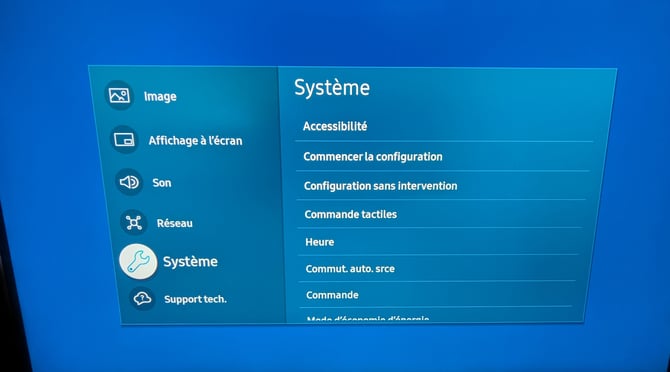

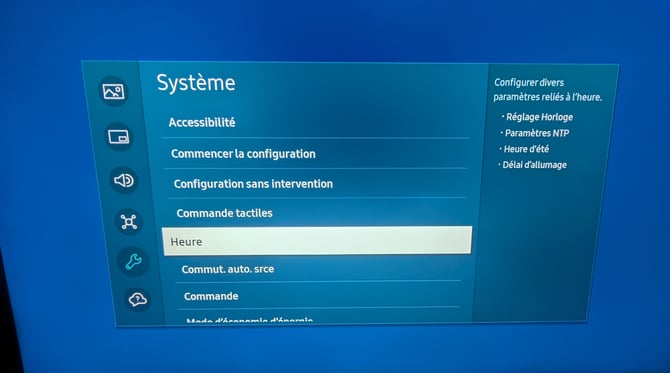

Select the "System" menu.

In the "System" menu, select the "Time" entry.

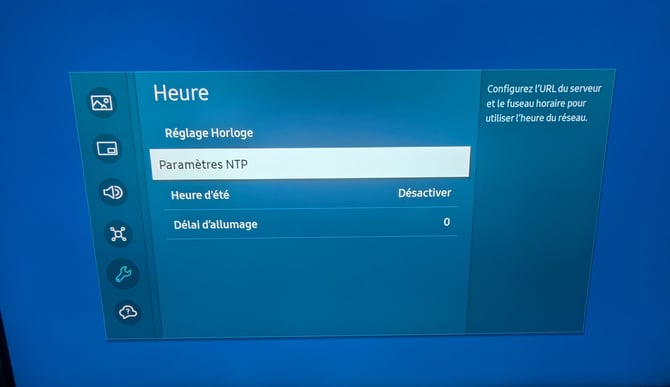

In the "Time" menu, select the "NTP Settings" entry.

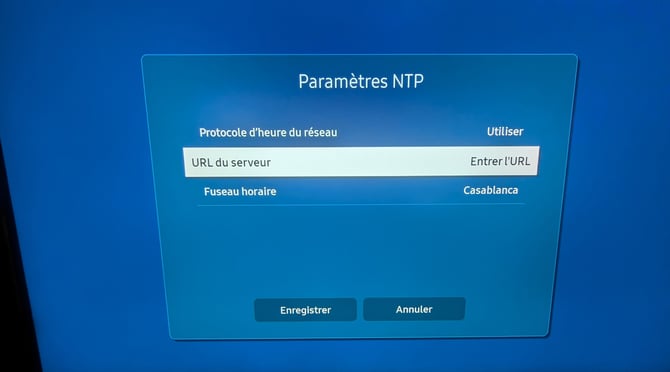

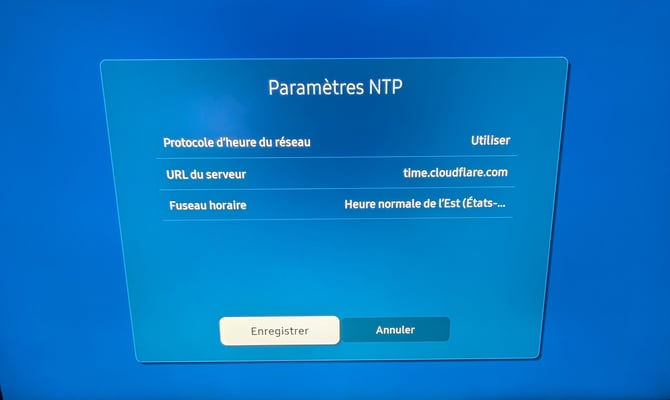

In the "NTP Settings" select the "Server URL" entry.

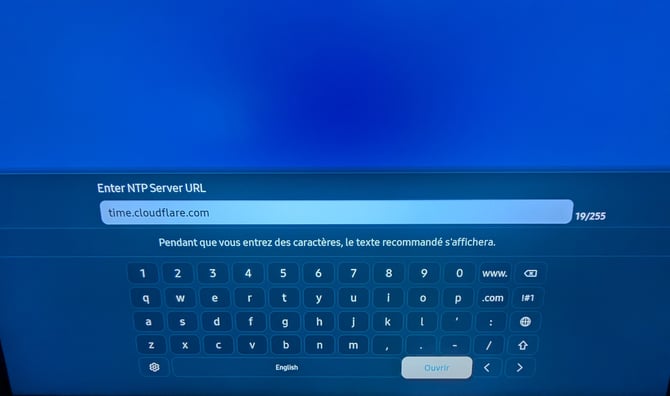

Enter the following URL.
time.cloudflare.com

Once you are back in the "NTP Settings" menu, select the "Time Zone" entry, then select your time zone in the list.

After having selected your time zone, select the "Save" button.

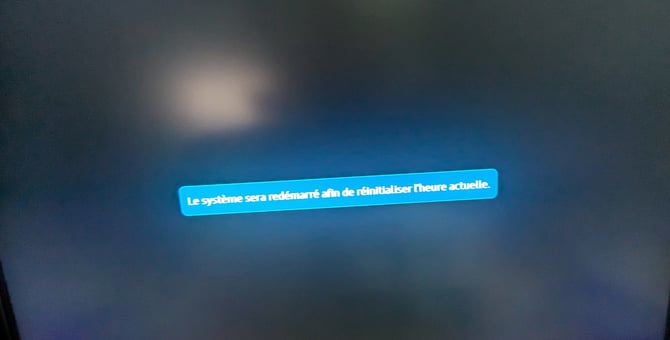

The monitor will then restart to reset the current time.

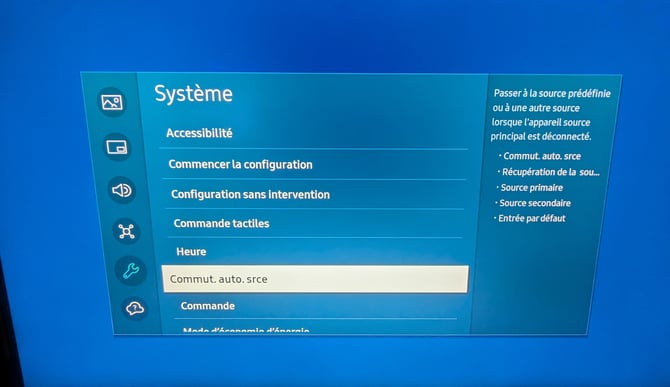

Return to the "System" menu and select the "Auto Source Switching" entry.

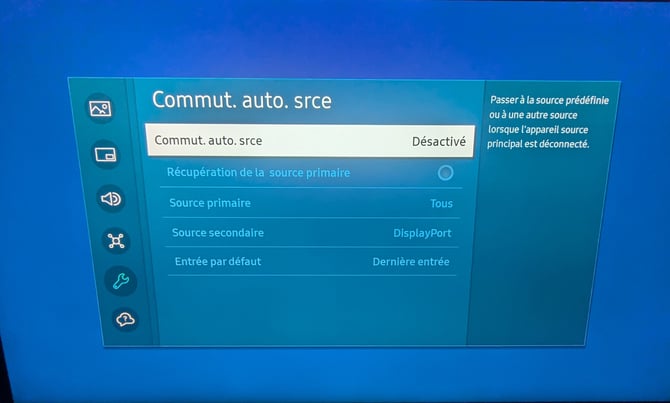

In the "Auto Source Switching" menu, select the "Auto Source Switching" configuration.

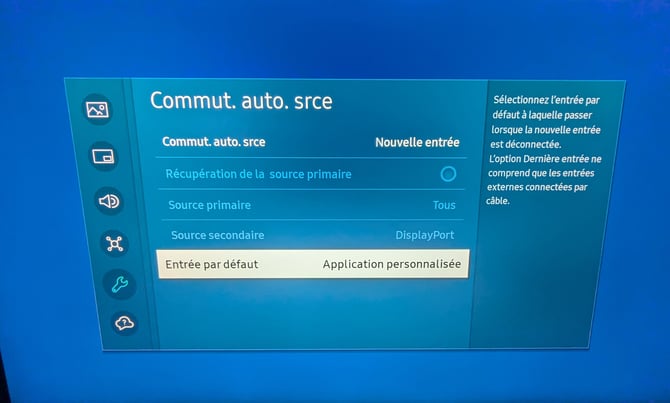

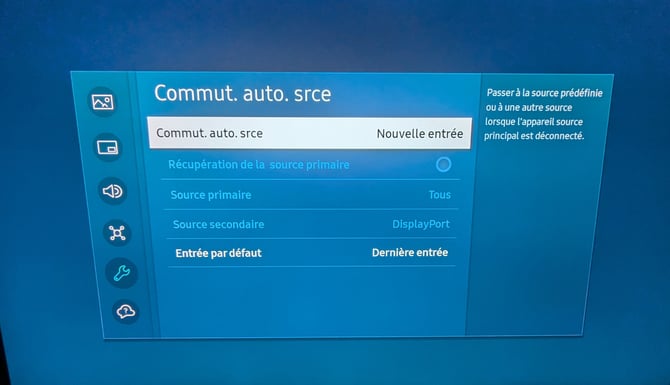

Select the "New Input" value for the "Auto Source Switching" configuration. Then select the "Default input" configuration.

Select the "Custom App" value.

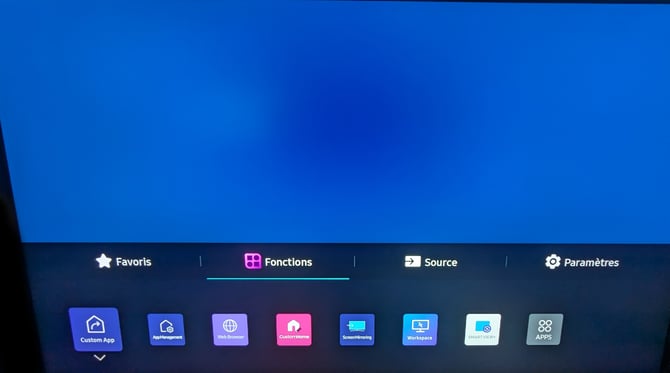

Now press the home button on your remote.

In the menu that opens, select the "Custom App" entry and enter the following URL to install the ITESLIVE software.
https://iteslive.tv/

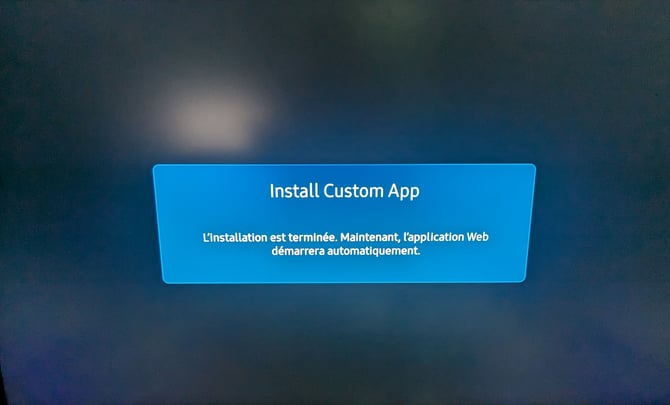

The monitor will confirm that the installation has been completed and will start the application automatically afterwards.

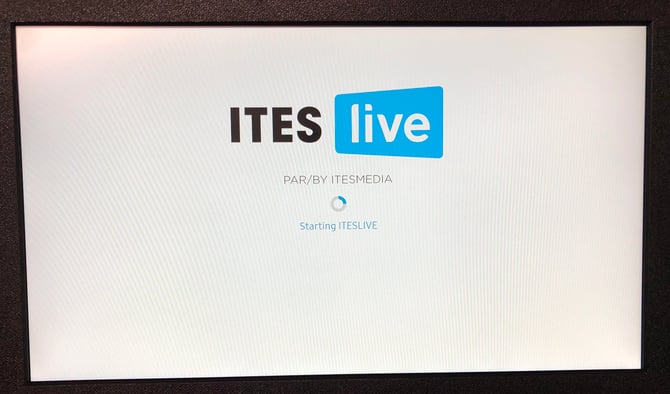

Once the application has been started, the following loading screen will be displayed.

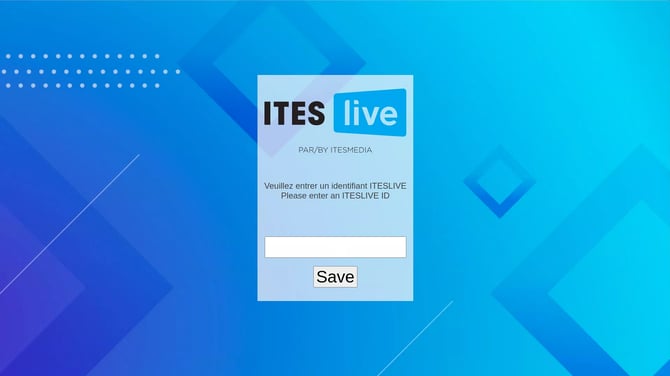

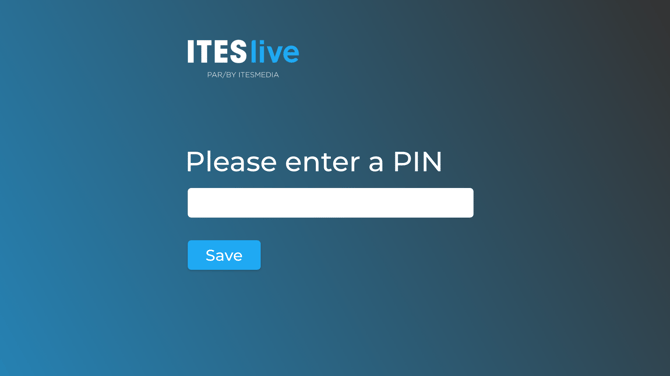

Once the software is ready, you will see an ITESLIVE message  asking for an ITESLIVE ID. You must enter your display's ID and once it has been confirmed the display will begin downloading its content.

3. ITESLIVE ID

The ITESLIVE ID can be found on the ITESLIVE Studio, the following are the steps required to access this information.

Select the screen with the content you wish to display

At step “01 Select a Screen,” choose the display with the content you wish to show on screen.

Open the broadcasting window

At “02 Select a Zone,” click the broadcasting icon.

Click the "Generate player activation Pin" button.

Click the "Accept" button to generate a PIN.

Take note of your ITESLIVE ID
